Hand Tools and Assembly Aids
Hand Tools
High quality cutters, nippers and special-use tools, manufactured for use in electronics industries.
Precision made from tempered steel for long lasting wear. Plastic insulated grips for safety and comfort.
Clean (flush) cut side nippers for ductile wires to ⌀ 1 mm.
Return spring PVC handles.
Length: 130 mm. Weight: 61 g. Cut: 10 mm.
- OD6620 BCM 220.
- Also known as 86-0170 (Rapid). Where to Buy
- Also known as MP001640 (FarnellNewark element 14). Where to Buy
Reverse cut side nippers for ductile wires to ⌀ 1 mm.
Cut at 1.5 mm from projection plane.
Length: 130 mm. Weight: 61 g. Cut: 10 mm.
- OD6621 BCM 220/15.
- Also known as MP001641 (FarnellNewark element 14). Where to Buy

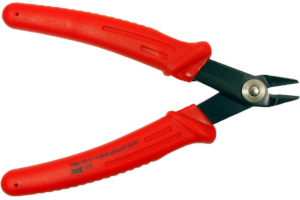

Clean (flush) cut side nippers for ductile wires to ⌀ 1.5 mm.
Length: 130 mm. Weight: 68 g. Cut: 10 mm.
- OD6623 BCM 300.
- Was also known as MP001642 (FarnellNewark element 14). Where to Buy
Front cut nippers for ductile wires to ⌀ 1 mm.
Good for narrow spaces.
Length: 138 mm. Weight: 72 g. Cut: 19 mm.
- OD66321 BCM 300/FC.
- Also known as MP001643 (FarnellNewark element 14). Where to Buy
Front cut nippers for ductile wires to ⌀ 1 mm.
Cut at 1.5 mm from projection plane.
Good for narrow spaces.
Length: 138 mm. Weight: 72 g. Cut: 19 mm.
- OD66331 BCM 315/FC.
- Also known as MP001644 (FarnellNewark element 14). Where to Buy
Needle nose pliers with internally knurled jaws.
Length: 150 mm. Weight: 73 g. Jaws length: 26 mm.
- OD66266 BCM 300/PL.
- Also known as MP001645 (FarnellNewark element 14). Where to Buy
Cut and bend in one.
Length: 128 mm. Weight: 71 g. Cut: 9 mm.
- OD66296 BCM 300/TP.
- Was also known as MP001646 (FarnellNewark element 14). Where to Buy
Cut and flatten in one.
For electronic component terminals.
Length: 126 mm. Weight: 69 g. Cut: 8 mm.
- OD6630 BCM 300/TS.
- Also known as MP001647 (FarnellNewark element 14). Where to Buy

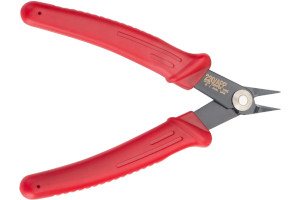

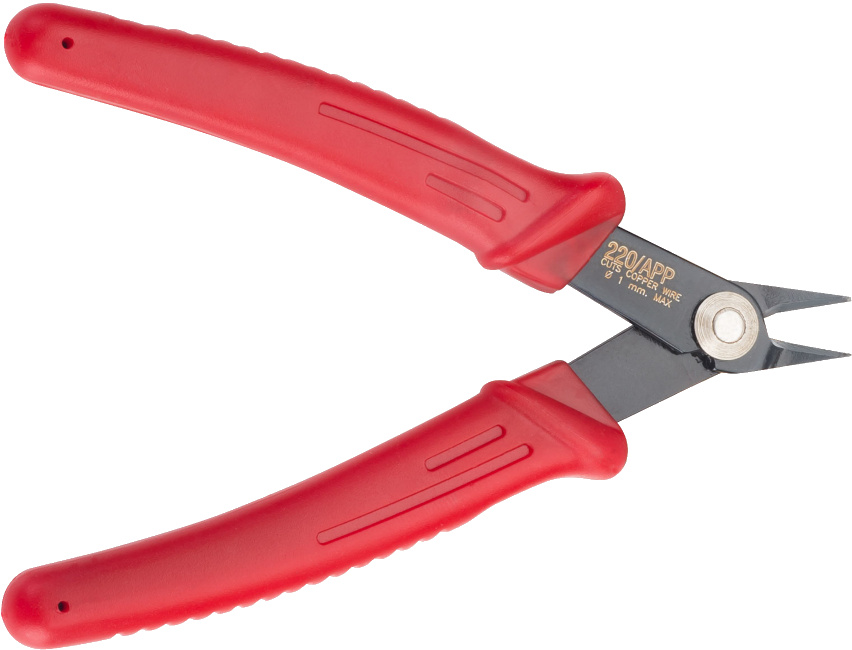

Fine blade flush side cutters for ductile wires to ⌀ 1 mm.
Return spring PVC handles.
Length: 127 mm. Weight: 60 g. Cut: 9.5 mm.
- OD66205 BCM 220/APP.
- Also known as 86-0180 (Rapid). Where to Buy
- Also known as 220APP (FarnellNewark element 14). Where to Buy

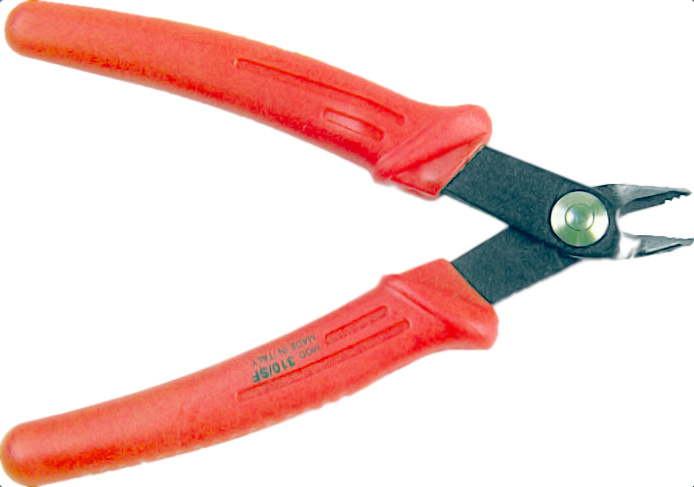

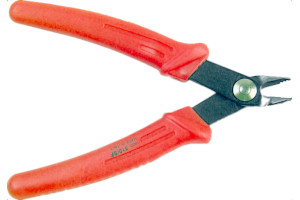

Wire stripper.
Length: 127 mm. Blade length: 9.5 mm.
- OD66242 BCM 310/SF.
- Also known as 310SF (FarnellNewark element 14).

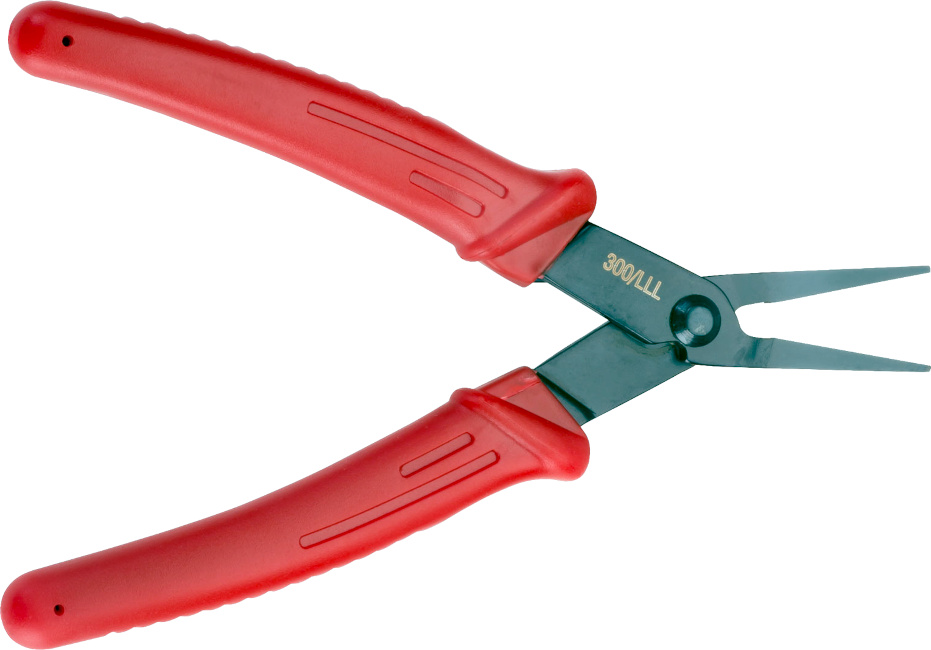

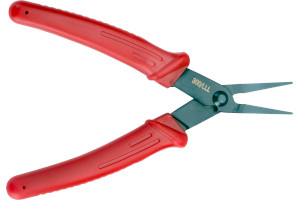

Flat nose pliers with smooth 3 mm wide jaws.
Return spring PVC handles.
Length: 150 mm. Weight: 74 g. Jaws length: 26 mm.
- OD6626 BCM 300/LLL.
- Also known as 300/LLL (Rapid). Where to Buy
- Also known as BS300LLL (FarnellNewark element 14).

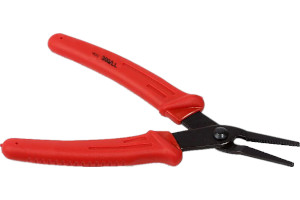

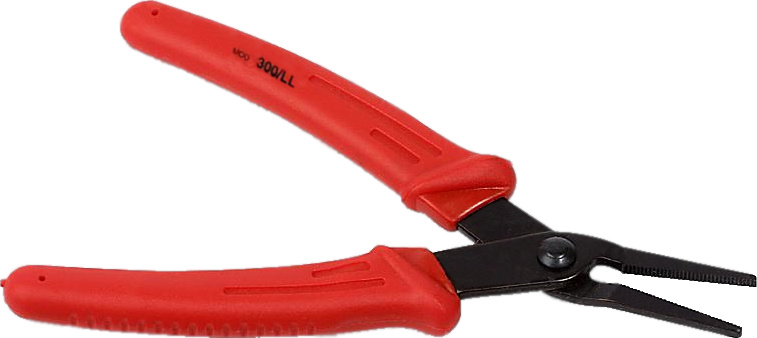

Flat nose pliers with serrated 3 mm wide jaws.
Return spring PVC handles.
Length: 150 mm. Weight: 74 g. Jaws length: 26 mm.
- OD66262 BCM 300/LL.
- Also known as 300LL (FarnellNewark element 14).
Flat nose pliers with serrated 1.5 mm wide jaws.
Return spring PVC handles.
Length: 136 mm. Weight: 71 g. Jaws length: 16 mm.
- OD6627 BCM 300/PN.
- Also known as 300/PN (Rapid). Where to Buy
- Also known as 300PN (FarnellNewark element 14).

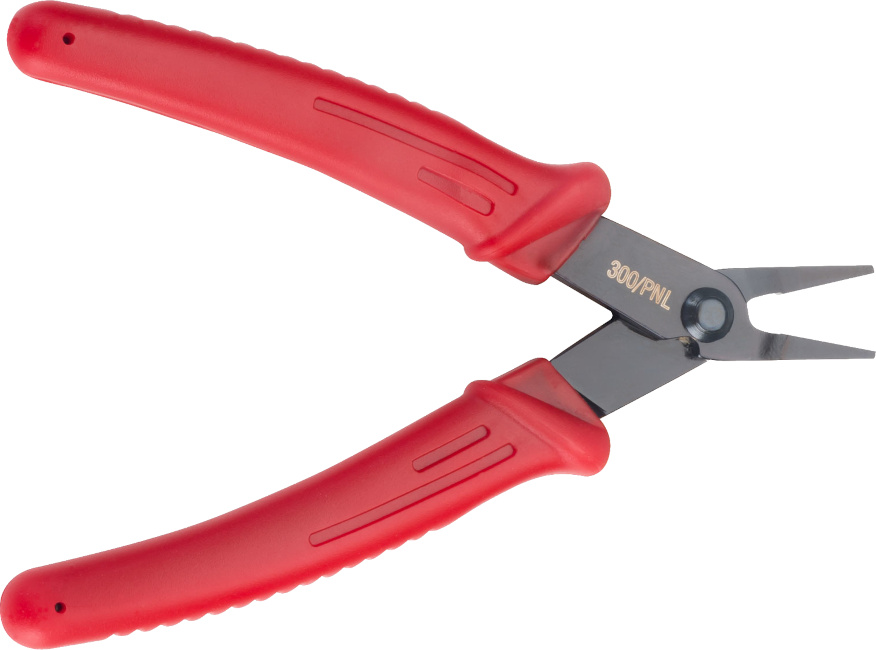

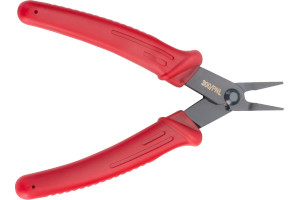

Flat nose pliers with smooth 1.5 mm wide jaws.
Return spring PVC handles.
Length: 136 mm. Weight: 71 g. Jaws length: 16 mm.
- OD66272 BCM 300/PNL.
- Also known as 300/PNL (Rapid). Where to Buy
- Was also known as BS300PNL (FarnellNewark element 14).

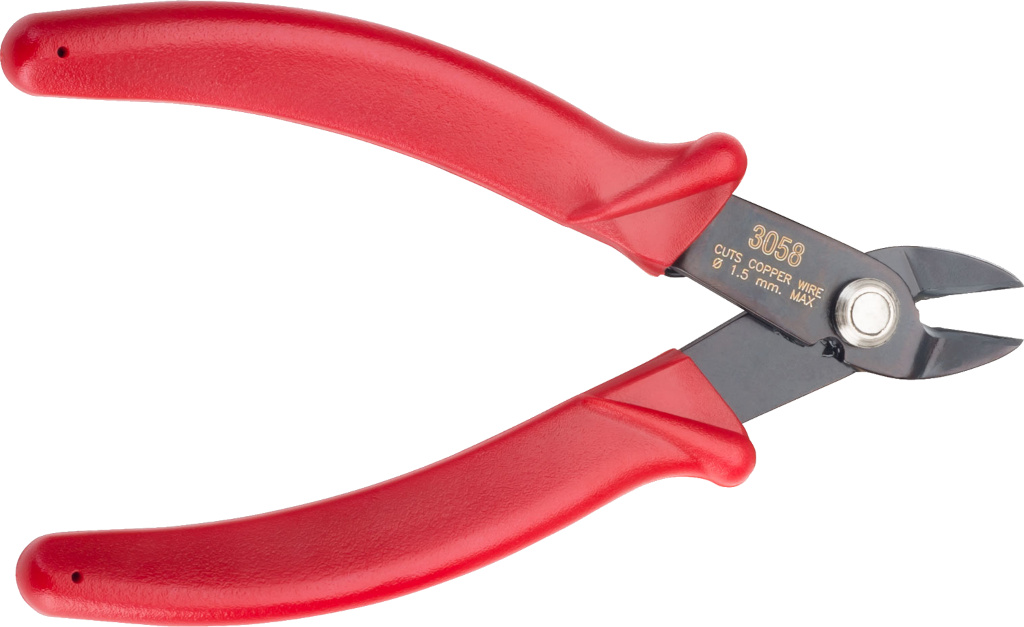

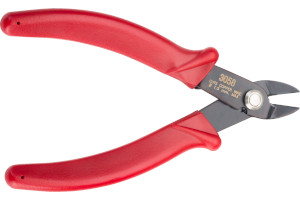

Semi clean (flush) heavy duty side cutters for steel wires to ⌀ 1.5 mm.
Return spring PVC handles.
Length: 151 mm. Weight: 102 g. Cut: 12 mm.
- OD6634 BCM 3058.
- Also known as 3058 (Rapid). Where to Buy
- Also known as BS3058 (FarnellNewark element 14).
Hand Tools and Assembly Aids - general information
Please contact Cliff™ sales for more information.
